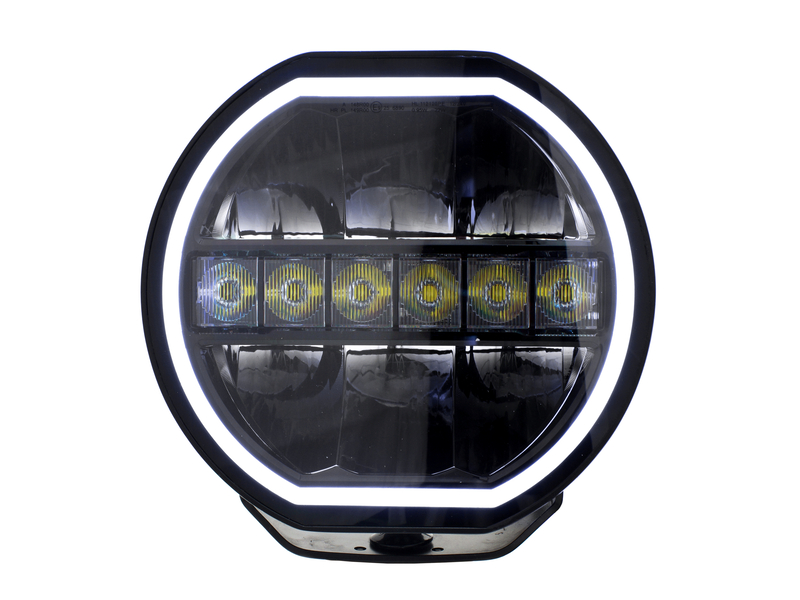

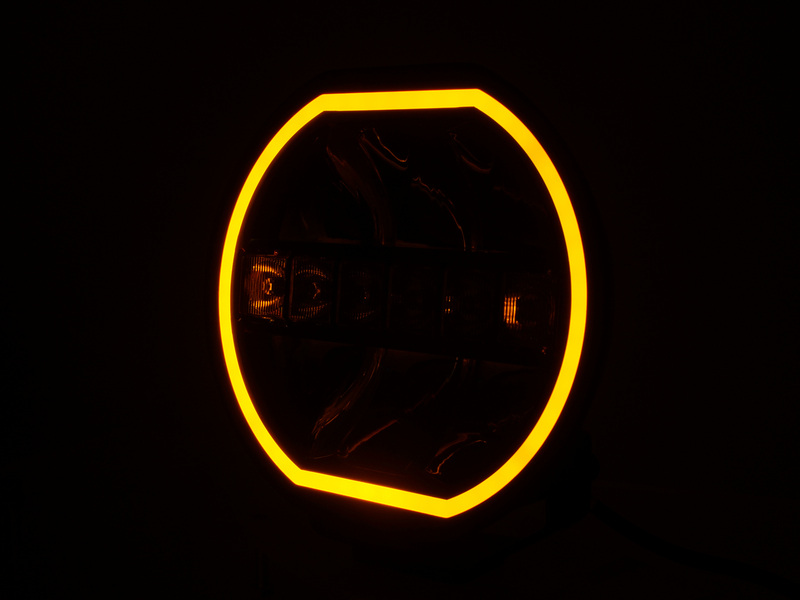

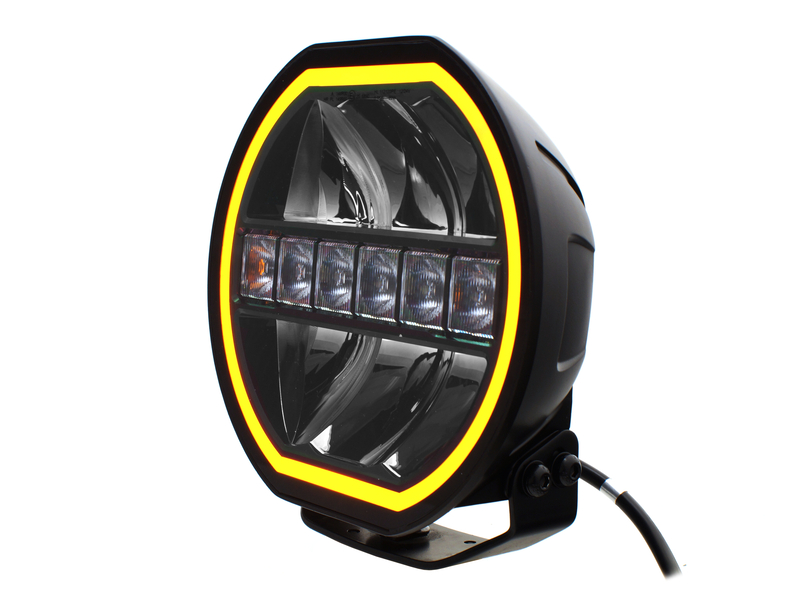

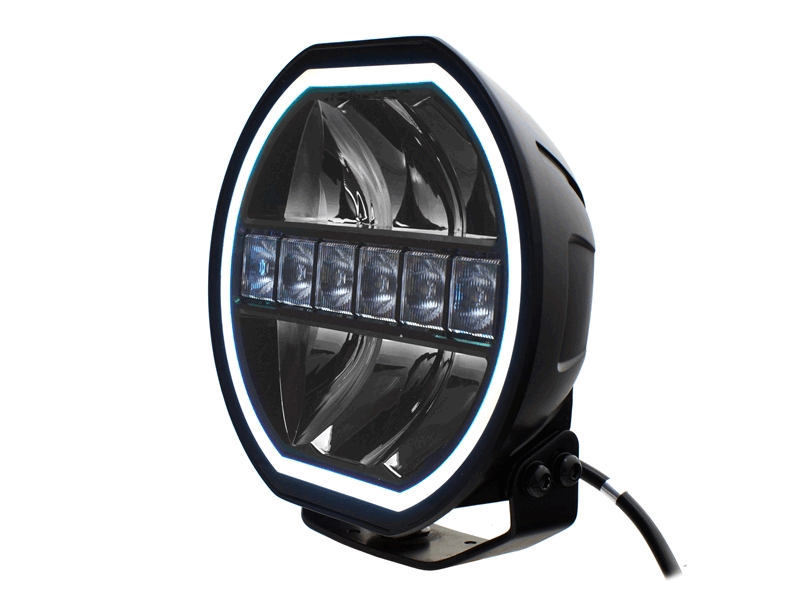

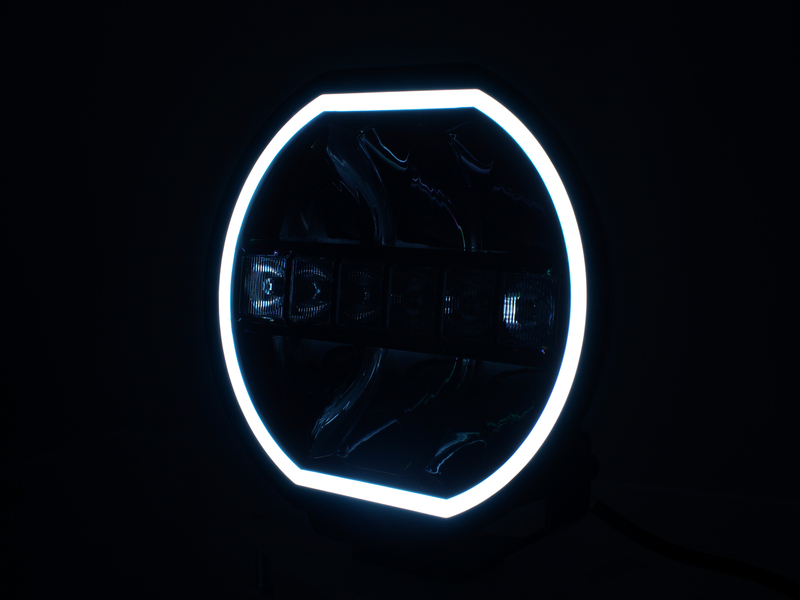

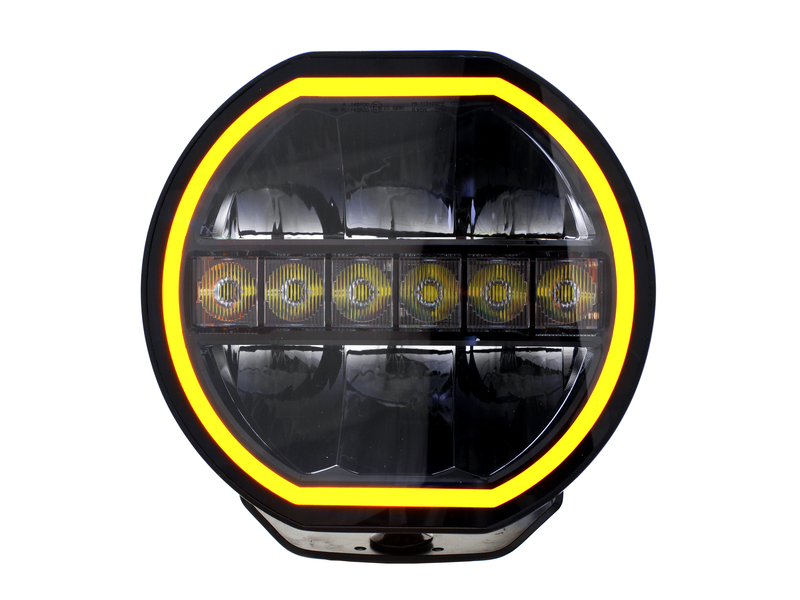

Prolumo Beam HEXA are E-approved round LED high beams with dual integrated LED position lights that illuminate the entire edge of the lamp with a "neon effect". This allows you to switch between white and yellow position lights to perfectly match your vehicle.

Two sizes

Available in 7" (108W) and 9" (144W) sizes, they offer very strong and sharp high beams. The lights are available with both E-approved and NON E-approved (Off-road / boost) high beams:

• 7" E-approved light: 1356 raw lumens
• 7" Off-road / boost light: 3600-5800 raw lumens
• 9" E-approved light: 1798 raw lumens
• 9" Off-road / boost light: 6500-11000 raw lumens

Enabling boost

The off-road light is activated by turning on the lamp for 2 seconds, then turning it on and off 3 times within 5 seconds. To return to the E-approved light, turn off the light for 5 seconds and repeat the procedure. The lights remember the last setting so you don't need to reconfigure them each time.

Durable

The front glass is made of scratch-resistant and unbreakable glass, and the lamp housing is made of powder-coated aluminum for a sleek design and good cooling for the high power LEDs.

Easy to mount

The included brackets are made of stainless steel and installation is made easy with an included DT Deutsch plug with counterpart.

Dimensions 7": 166mm x 71mm x 77mm

Dimensions 9": 218mm x 84mm x 233mm

Cable colors:

• Black: Ground
• Red: High beam
• White: White position light
• Yellow: Yellow position light

Specifications

• Voltage: 12V - 30V
• Temperature: -40 to +60 degree
• Ingress protection: IP67
• 7" model
  • Max power 108W
  • LEDs: 18 x 6W
  • Lumens: 5800lm
  • Reference value: 25
• 9" model
  • Max power 144W
  • LEDs: 24 x 6W
  • Lumens: 11000lm
  • Reference value: 25
