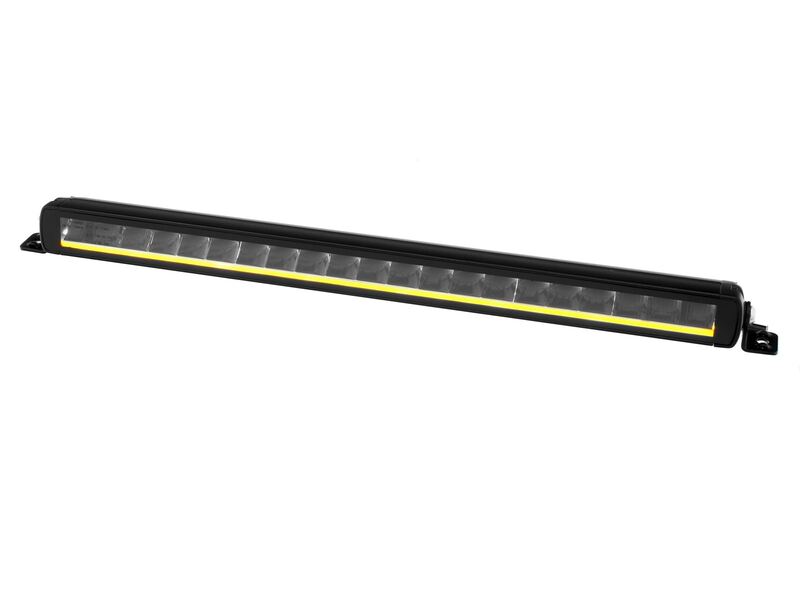

Prolumo Bar SLIM are E-approved flat LED light bars with dual built-in LED position lights, illuminating at the bottom of the bar in a 'neon effect'. This allows you to switch between white and yellow position lights to perfectly match your vehicle.

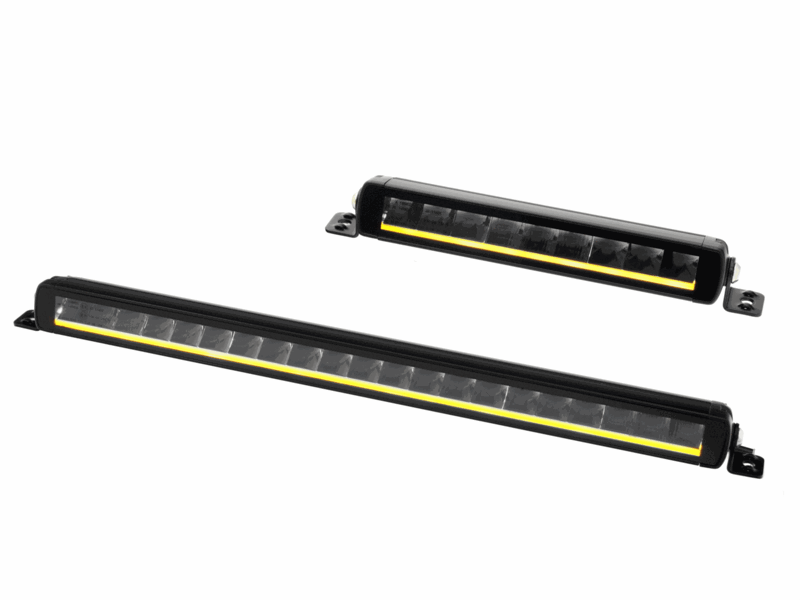

Two lengths

Available in 25 cm (45W) and 52 cm (105W) with extremely long and sharp high beams. The lights have both E-approved and non-E-approved (Off-road/boost) high beam modes:

Dimensions 25cm: 246mm x 40mm x 55mm
Dimensions 52cm: 522mm x 40mm x 55mm

• 25cm E-approved light: 1579 raw lumens
• 25cm Off-road / boost light: 2703 raw lumens
• 52cm E-approved light: 3730 raw lumens
• 52cm Off-road / boost light: 6332 raw lumens

Enabling boost

The off-road light is activated by turning on the lights for 2 seconds, then turning them on and off 3 times within 5 seconds. To switch back to E-approved light, turn off the lights for 5 seconds and repeat the process. The lights remember the last setting, so reinstallation is not necessary each time.

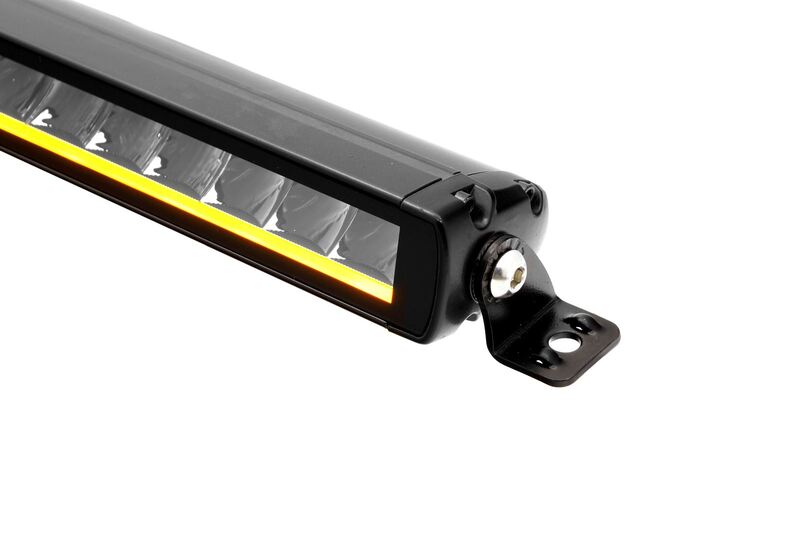

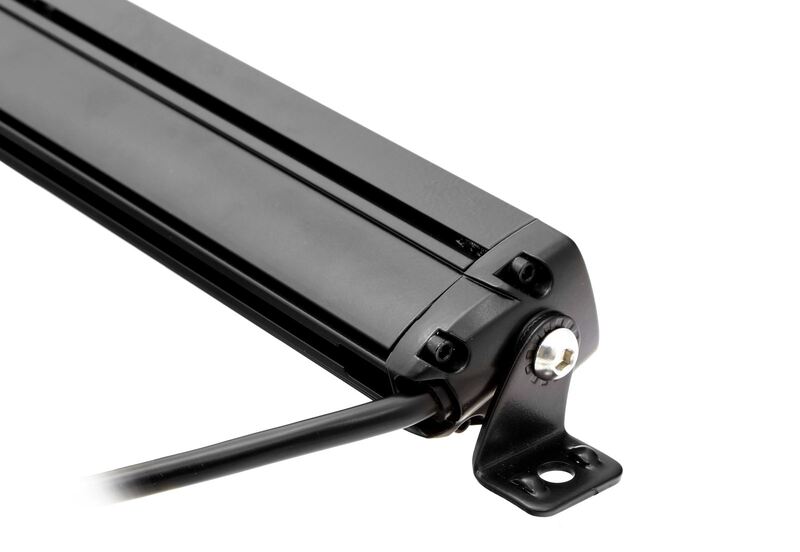

The front glass is made of scratch-resistant and unbreakable glass, and the lamp housing is made of powder-coated aluminum for a sleek design and good cooling for the LEDs. The included brackets are made of stainless steel, and the lights come with a DT Deutsch plug and counterpart, making installation very easy.

Cable colors:

• Black: Ground
• Red: High beam
• White: White position light
• Yellow: Yellow position light

Specifications

• Voltage: 10V - 30V
• Temperature: -40 to +60 degree
• Ingress protection: IP68
• Kelvin 5700K
• 25cm model
  • Max power 45W
  • LEDs: 9 x 5W Osram
  • Effective lumens: 2703
  • Raw lumens: 3780lm
  • Reference value: 20
• 52cm model
  • Max power 1050W
  • LEDs: 21 x 5W Osram
  • Effective lumens: 6332lm
  • Raw lumens: 8820lm
  • Reference value: 50
